Classic car cooling systems are simple in design—but extremely sensitive in execution.
Unlike modern vehicles, they rely entirely on mechanical balance, airflow efficiency, and correct material compatibility.
Understanding how these systems truly work—and where they fail—is essential if you want to preserve engine integrity, originality, and long-term reliability.
Section 1 — Basic Function: Heat Management in Vintage Engines
Every internal combustion engine generates heat—but classic engines manage it differently than modern ones.
Because these systems lack the advanced sensors of modern cars, understanding the raw physics of combustion is vital.
What Happens Inside the Engine
According to technical data from Cojali Parts, [combustion temperatures can reach a staggering 2,500°C] (over 4,500°F) inside the chamber.
To prevent engine failure, the cooling system must efficiently dissipate this heat as it transfers into:
- Cylinder walls
- Pistons
- Cylinder heads
Without proper cooling:
- Metal expands unevenly
- Oil breaks down
- Internal damage occurs rapidly
Repeated overheating and rapid temperature changes create engine thermal stress.
Uneven expansion between the engine block, cylinder heads, pistons, valves, and gaskets can eventually cause warping, cracking, sealing problems, or premature component failure.
Maintaining a stable operating temperature is just as important as preventing extreme overheating.

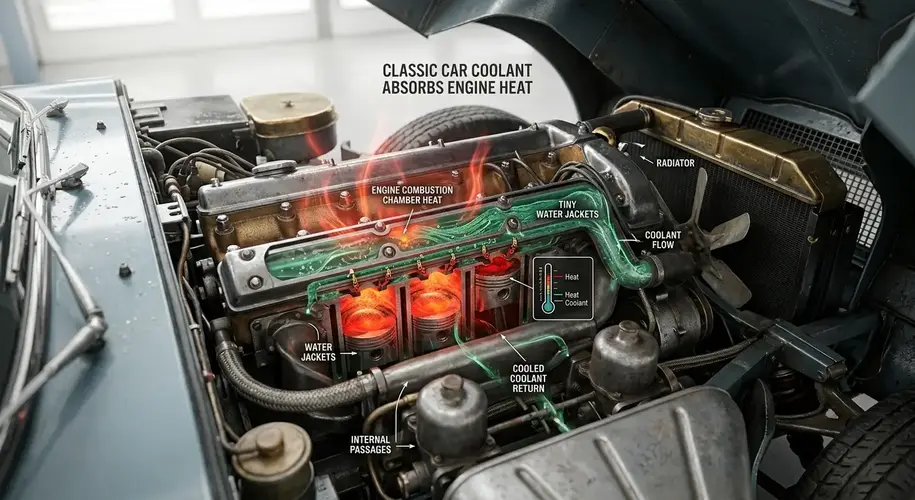

The Cooling System’s Job
- Coolant absorbs heat from engine components
- Heat is transported away from critical areas
- Radiator releases that heat into the air
Unlike modern systems, there are no electronic corrections—everything depends on mechanical efficiency.
Engine material also affects how heat moves through the cooling system. Cast iron retains heat longer and transfers it more slowly, while aluminum transfers heat more quickly but can also experience rapid temperature changes.
Classic engines combining cast-iron blocks with aluminum cylinder heads require especially careful coolant selection and temperature control because the different metals expand and transfer heat at different rates.
Section 2 — Coolant Flow Cycle (What Actually Happens Step-by-Step)
A properly functioning system depends on continuous, regulated coolant circulation.
Water Pump — The System’s Circulatory Force
- Belt-driven in most classic cars
- Pushes coolant through:
- Engine block
- Cylinder heads
- Radiator
Inside the engine, coolant travels through water jackets surrounding the cylinders and combustion chambers. Their design determines which areas receive the greatest coolant flow and how evenly heat is removed.
Rust, scale, casting debris, and sediment can restrict these internal passages, creating localized hot spots that may not be visible during a standard radiator inspection.
Critical detail most miss:
Worn or poorly designed impellers reduce flow—even if the pump “looks fine.”
Excessive pump speed, restricted coolant flow, incorrect pulley ratios, or poor impeller design can cause water pump cavitation.
This occurs when vapor bubbles form around the impeller and collapse, reducing coolant circulation and potentially damaging the pump.
Cavitation can create overheating even when the water pump is turning and no external leak is present.
Thermostat — Temperature Control Gate
- Stays closed during warm-up
- Opens at a set temperature (typically 160–195°F)
Controls:
- Flow timing
- Engine operating temperature
Incorrect thermostat rating = unstable engine temperature behavior
Before assuming the engine is overheating, verify the accuracy of the temperature gauge and sending unit.
Original gauges, aging wiring, poor grounds, and mismatched sending units can produce readings that are higher or lower than the engine’s actual temperature.
Compare the dashboard reading with an infrared thermometer at the thermostat housing and radiator inlet to confirm whether the temperature reading is accurate.
Radiator — Heat Exchange Core
- Hot coolant enters the radiator
- Heat dissipates through metal fins
- Airflow removes heat
Classic systems typically use:
- Copper/brass radiators
- Larger passages but lower efficiency than modern aluminum units
Internal clogging is one of the most common hidden issues
Section 3 — Airflow Dynamics: The Hidden Half of Cooling Performance
Cooling is not just about coolant—it’s about how effectively heat is removed from the radiator.
Fan Function (Critical at Low Speeds)
- Pulls air through radiator when the car isn’t moving
- Essential during:
- Idle
- Stop-and-go driving
Types:
- Fixed blade fans
- Clutch-driven fans
A thermal fan clutch allows the fan to spin more aggressively as underhood and radiator temperatures increase. When the engine is cool, the clutch partially disengages to reduce drag and noise.
A worn fan clutch may appear normal during a visual inspection but fail to engage when temperatures rise, causing overheating primarily at idle or in stop-and-go traffic.
Airflow Efficiency Factors
- Fan shroud presence (often missing in restorations)

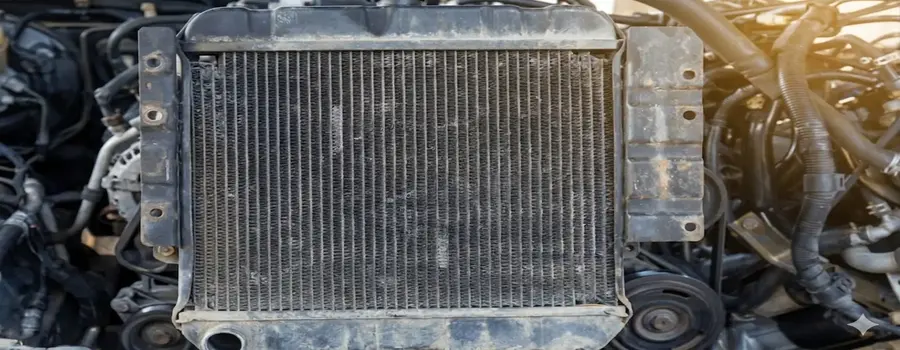

- Radiator fin condition
- Engine bay airflow restriction
Radiator fin density must also match the available airflow. A radiator with tightly packed fins may offer more heat-transfer surface area, but it can restrict airflow if the fan, shroud, or vehicle speed cannot move enough air through the core.
More fins are not automatically better—especially in classic cars with mechanical fans and limited low-speed airflow.
Even a perfect coolant system fails without proper airflow management.
Speed-Based Cooling Behavior
- At low speeds: fan-dependent cooling
- At higher speeds: natural airflow dominates
This difference often masks underlying system inefficiencies.
This is also why many classic vehicles struggle in stop-and-go conditions—something we break down in detail in our guide on why classic cars overheat in traffic.
Section 4 — Key Components That Determine System Reliability
A cooling system is only as strong as its weakest component—and in classic cars, multiple parts often degrade simultaneously.
Radiator
- Must be internally clean and structurally intact
- Sediment buildup reduces heat transfer
Water Pump
- Responsible for flow consistency
- Weak pumps create uneven cooling zones
Thermostat
- Regulates engine temperature stability
- Incorrect or faulty units disrupt system balance
Hoses & Flow Pathways
- Carry coolant between components
- Often overlooked during restoration
Important detail:
Many original lower radiator hoses included internal springs to prevent collapse under suction.
Modern replacements often lack this—leading to mystery overheating at highway speeds.
Section 5 — Critical Cooling Details Most Classic Car Owners Overlook
This is where most guides—and many shops—fall short.
1. Coolant Chemistry Compatibility
Modern coolant ≠ always correct for classic cars.
- Modern vehicles use OAT (Organic Additive Technology)
- Classic systems (copper/brass radiators) require: Traditional ethylene glycol with silicates/phosphates
The corrosion inhibitors in antifreeze protect metal surfaces, soldered radiator joints, the water pump, and internal coolant passages.
These additives become depleted over time even when the coolant still looks clean.
Coolant should therefore be selected according to the metals and materials in the system and replaced at an appropriate interval rather than judged by color alone.
Why it matters:
- Prevents internal corrosion
- Protects soldered joints
2. Expansion vs Recovery Systems
Two common setups:
Open System (Overflow / “Puke Tank”)
- Releases excess coolant
- Does NOT recover it
Closed Recovery System
- Pulls coolant back into the radiator as it cools
- Maintains proper system pressure
Many classic cars lose efficiency due to outdated overflow setups
3. Flow Restriction Issues (Often Misdiagnosed)
- Collapsing hoses
- Internal radiator blockage
- Poor water pump design
These issues don’t always show up immediately—but cause progressive performance loss.
Section 6 — How to Diagnose Cooling System Problems
This is how experienced restorers identify real issues—not guess.

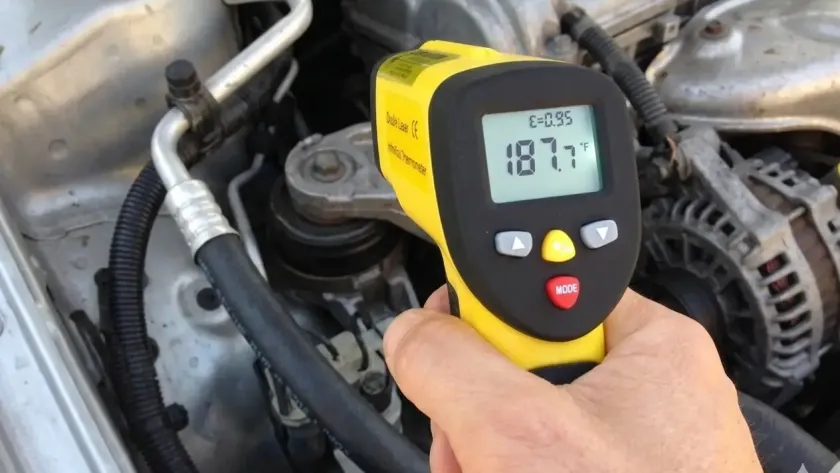

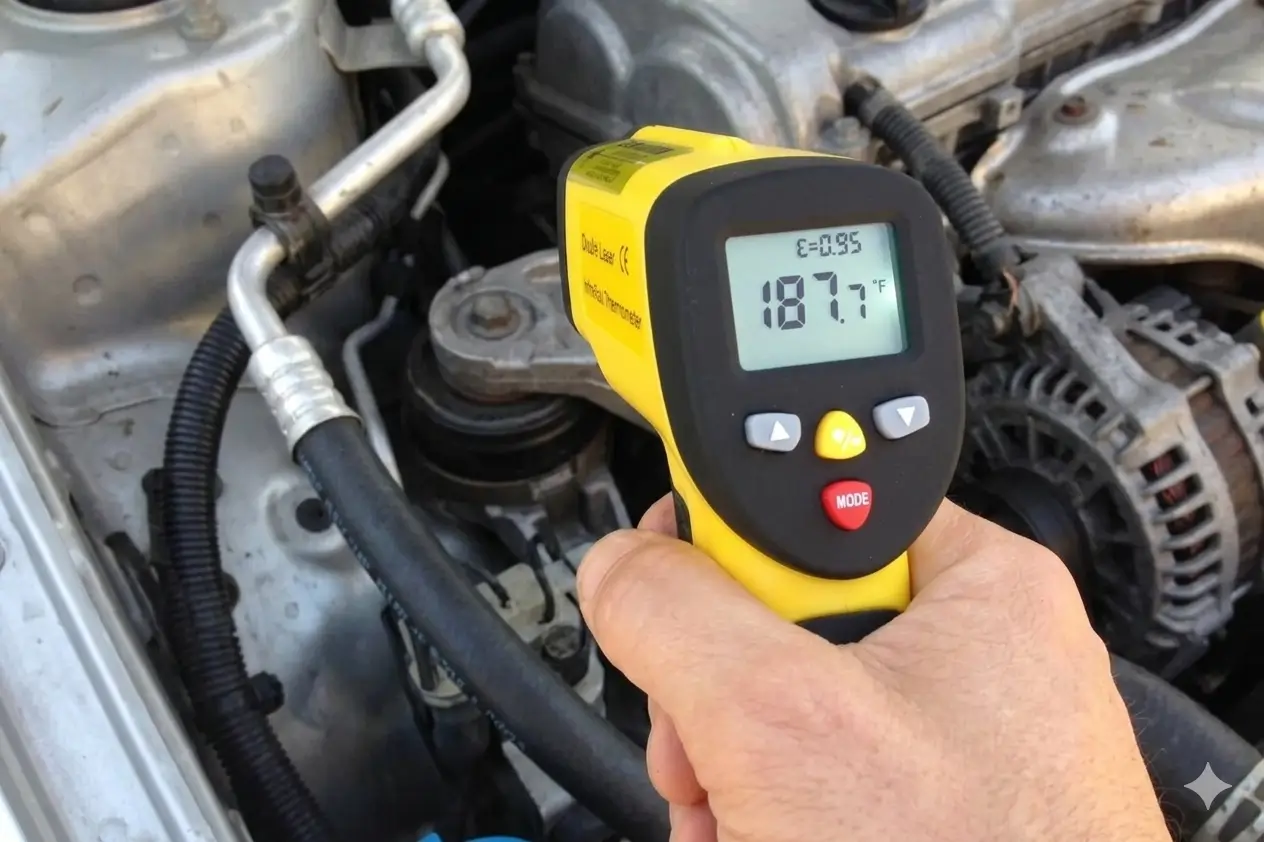

Infrared Thermometer Test
- Scan radiator surface
- Look for cold spots
Cold spots = internal blockage (not fixable with flushing)
Thermostat Bench Test (Classic Method)
- Suspend thermostat in heated water
- Use thermometer to monitor opening point
Ensures:
- Correct temperature rating
- Proper function

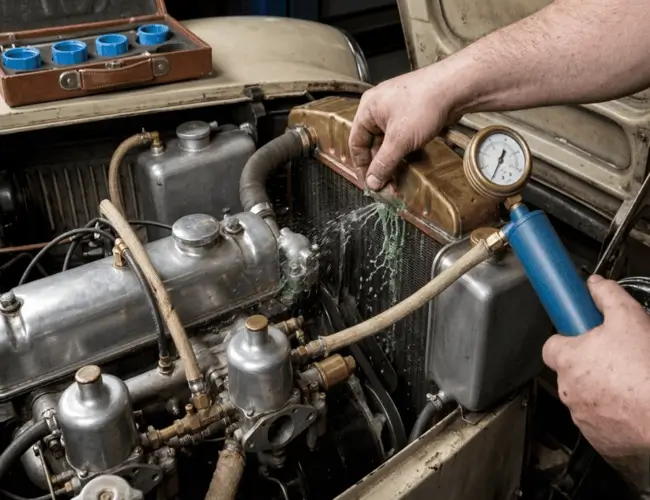

Pressure Testing the System
- Apply 12–15 PSI (typical for classics)
- Check for:
- Hidden leaks
- Weak seals
- Pressure loss
Many leaks only appear under pressure—not visually
Section 7 — Restore vs Upgrade: What’s Right for Your Classic Car?
One of the most common decisions owners face.
Restoration Approach (Originality Focused)
- Retain factory components
- Re-core original radiator
- Maintain period-correct setup
Best for:
- Collectors
- Show cars
Performance Upgrade Approach
- Aluminum radiators
- Electric fans
- Improved airflow setups
Best for:
- Daily drivers
- Modified engines
For owners looking to improve cooling in modern driving conditions, many choose airflow upgrades such as electric fan systems—covered in our detailed guide on electric fan conversions for classic cars.
Balanced Approach (Recommended in Most Cases)
- Preserve visual originality
- Improve internal performance where needed
This ensures reliability without compromising authenticity
Section 8 — 10-Point Classic Car Cooling System Inspection Checklist
Use this to evaluate your system:
- Radiator internal condition
- Coolant type compatibility
- Hose integrity (including collapse resistance)
- Water pump performance
- Thermostat function
- Fan efficiency
- Presence of fan shroud
- Airflow path (no obstructions)
- Pressure integrity
- Overflow/recovery system type
Section 9 — Real Restoration Insight (From Coastline Classic Car Restorations)
A recent project involved a 1969 Camaro with persistent temperature instability.
Initial assumptions:
- Radiator issue
- Fan inefficiency
Actual problem:
Partially blocked heater core restricting coolant flow.
Solution:
- Full system inspection
- Flow correction
- Component balancing
Result:
- Stable operating temperature
- Improved engine performance
This is why cooling issues must be diagnosed as a system—not isolated parts
FAQs
How does a classic car cooling system actually work?
It circulates coolant through the engine to absorb heat, then releases that heat through the radiator using airflow.
Why is my classic car running hot even after replacing parts?
Because cooling systems require balanced performance across all components, not just individual replacements.
What coolant should I use in a classic car?
Most classic cars require ethylene glycol with corrosion inhibitors, not modern OAT coolant.
How do I know if my radiator is clogged internally?
Use an infrared thermometer—cold spots across the radiator indicate restricted flow.
Final Insight: Why Proper Cooling System Restoration Matters
Cooling systems in classic cars are not “plug-and-play.”
They require:
- Correct materials
- Proper airflow
- Balanced system design
At Coastline Classic Car Restorations in Huntington Beach & Orange County,, we approach every cooling system as a complete mechanical ecosystem—not just a collection of parts.
If your vehicle shows signs of temperature instability, leaks, or inconsistent performance, it may require a full cooling system evaluation and restoration—not temporary fixes.
